CT7118 Unfold All
Product Description
CT7118 is a digital-output temperature sensor with a dynamically-programmable limit window, and under- and over-temperature alert functions. It is ideally used in the thermal management of smartphones, laptops, and tablets.
Product Features

l  Supply range: 1.8 V to 5.5 V.

l  Dynamically-programmable limit window with under-temperature and over-temperature alerts.

l  Supports ARA (Alert Response Address)

l  Temperature Accuracy:

CT7118J6R:

Maximum: ±0.5°C from –20°C to +85°C.

Maximum: ±0.75°C from –40°C to +125°C.

CT7118AK6R, CT7118BK6R, CT7118CK6R:

Maximum: ±1°C from –20°C to +85°C.

Maximum: ±2°C from –40°C to +125°C.

l  Low quiescent current:

Maximum: 3.5 μA from –40°C to +125°C @ 1.8V

l  Low shutdown current:

Maximum: 350 nA from –40°C to +125°C @ 1.8V

l  Resolution:

CT7118/CT7118C: 12 bits (0.0625°C).

CT7118A/CT7118B: 13 bits (0.03125°C).


Typical Application
Functional Block Diagram
Package

CSP-6

SOT-23-6


Datasheet
Ordering Information

Order PN

Slave Address

Green(1)

Package

Marking ID(2)

Packing

MPQ

Operation Temperature

CT7118J6R

Refer to Chapter 10.1.2

Halogen free

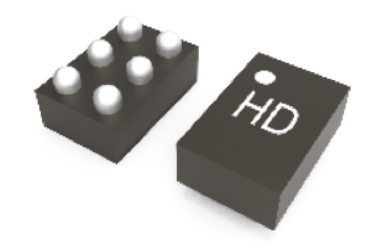

CSP-6

HD

Tape & Reel

3,000

-40oC ~ +125oC

CT7118AK6R

Halogen free

SOT23-6

JMWX

Tape & Reel

3,000

-40oC ~ +125oC

CT7118BK6R

Halogen free

SOT23-6

JNWX

Tape & Reel

3,000

-40oC ~ +125oC

CT7118CK6R

Halogen free

SOT23-6

JPWX

Tape & Reel

3,000

-40oC ~ +125oC
