Product Description

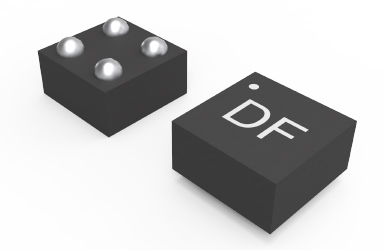

CT7117 is a Digital Temperature Sensor with ±0.1℃ Accuracy, CSP-4 package Compatible with SMBus/I2C Interface. It is ideally used in space constrained application, like Camera Module, SSD and Portable Devices etc.

Product Features

l Operation Voltage: 1.4V to 5.5V

l Average Quiescent Current: 3uA(Typ.) at 1.0Con/s, 3.3V

l Standby Current: 30nA (Typ.)

l Temperature Accuracy without calibration:

Maximum:±0.1^oC from 20^oC to 50^oC

Maximum:±0.3^oC from -40^oC to 125^oC

Maximum:±0.5^oC from -50^oC to 150^oC

l 16 bit ADC for 0.0078125^oC resolution

l Compatible with SMBus, I²C interface

l Programmable Over/Under Temperature

l 8 different slave addresses available with different suffix

l Temperature Range: -50^oC to 150^oC

Typical Application

Functional Block Diagram

Package

CSP-4

Datasheet

CT7117

Ordering Information

Order PN	Slave Address (Write)	Accuracy	Green¹	Package	Marking ID²	Packing	MPQ	Operation Temperature
CT7117AJ4R	0x90	±0.1^oC	Halogen free	CSP-4	DF	Tape & Reel	3,000	-50^oC~+150^oC
CT7117BJ4R	0x92	±0.1^oC	Halogen free	CSP-4	DG	Tape & Reel	3,000	-50^oC~+150^oC
CT7117CJ4R	0x94	±0.1^oC	Halogen free	CSP-4	DH	Tape & Reel	3,000	-50^oC~+150^oC
CT7117DJ4R	0x96	±0.1^oC	Halogen free	CSP-4	DJ	Tape & Reel	3,000	-50^oC~+150^oC
CT7117EJ4R	0x98	±0.1^oC	Halogen free	CSP-4	DK	Tape & Reel	3,000	-50^oC~+150^oC
CT7117FJ4R	0x9A	±0.1^oC	Halogen free	CSP-4	DL	Tape & Reel	3,000	-50^oC~+150^oC
CT7117GJ4R	0x9C	±0.1^oC	Halogen free	CSP-4	DM	Tape & Reel	3,000	-50^oC~+150^oC
CT7117HJ4R	0x9E	±0.1^oC	Halogen free	CSP-4	DN	Tape & Reel	3,000	-50^oC~+150^oC
