Product Description

CHT8336 is an Analog Output Humidity and Temperature Sensor with ±2.0%RH accuracy for humidity and ±0.2°C accuracy for temperature. The sensor supports multi slope gain of temperature & humidity to Voltage. It is ideally used in HVAC, Refrigerator, environment monitor etc.

Product Features

Operation Voltage: 1.8V to 5.5V
Average Operating Current: 220uA (Typ.)@3.3V, 2Con/s for Both temperature and humidity Conversion
High reliability and long-term stability
Temperature Accuracy with calibration:
±0.2℃(Typ.), ±0.5℃(Max.)from 10℃ to 50℃
±0.5℃(Typ.), ±1.0℃(Max.) from -40℃ to 125℃
Humidity Accuracy with calibration: ±3%RH(Max.) from 20%RH to 80%RH
Temperature Range: -40℃ to 125 ℃
Humidity Range: 0%RH to 100%RH
High process capability
High signal-to-noise ratio

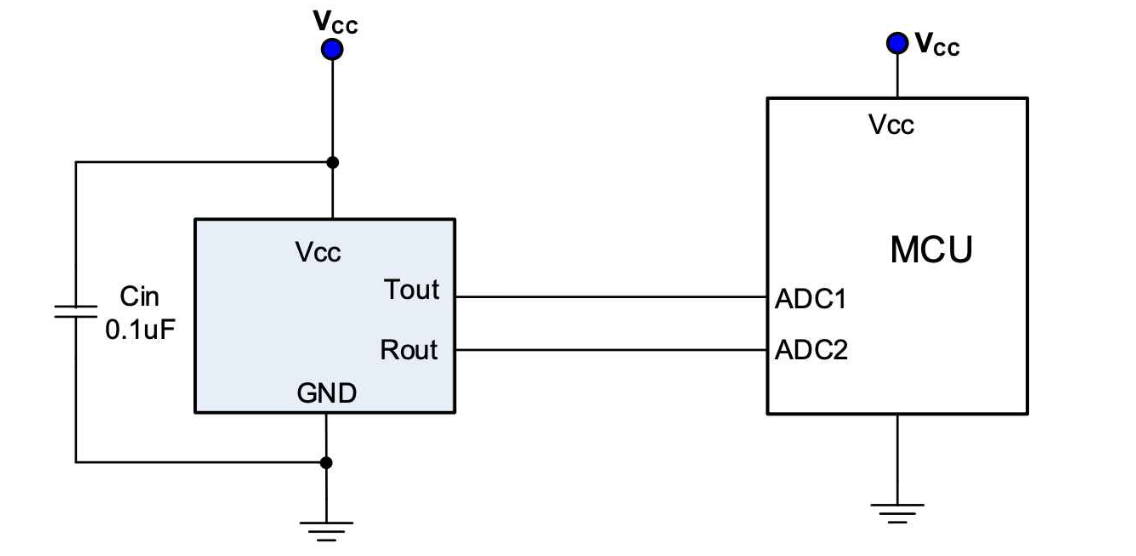

Typical Application

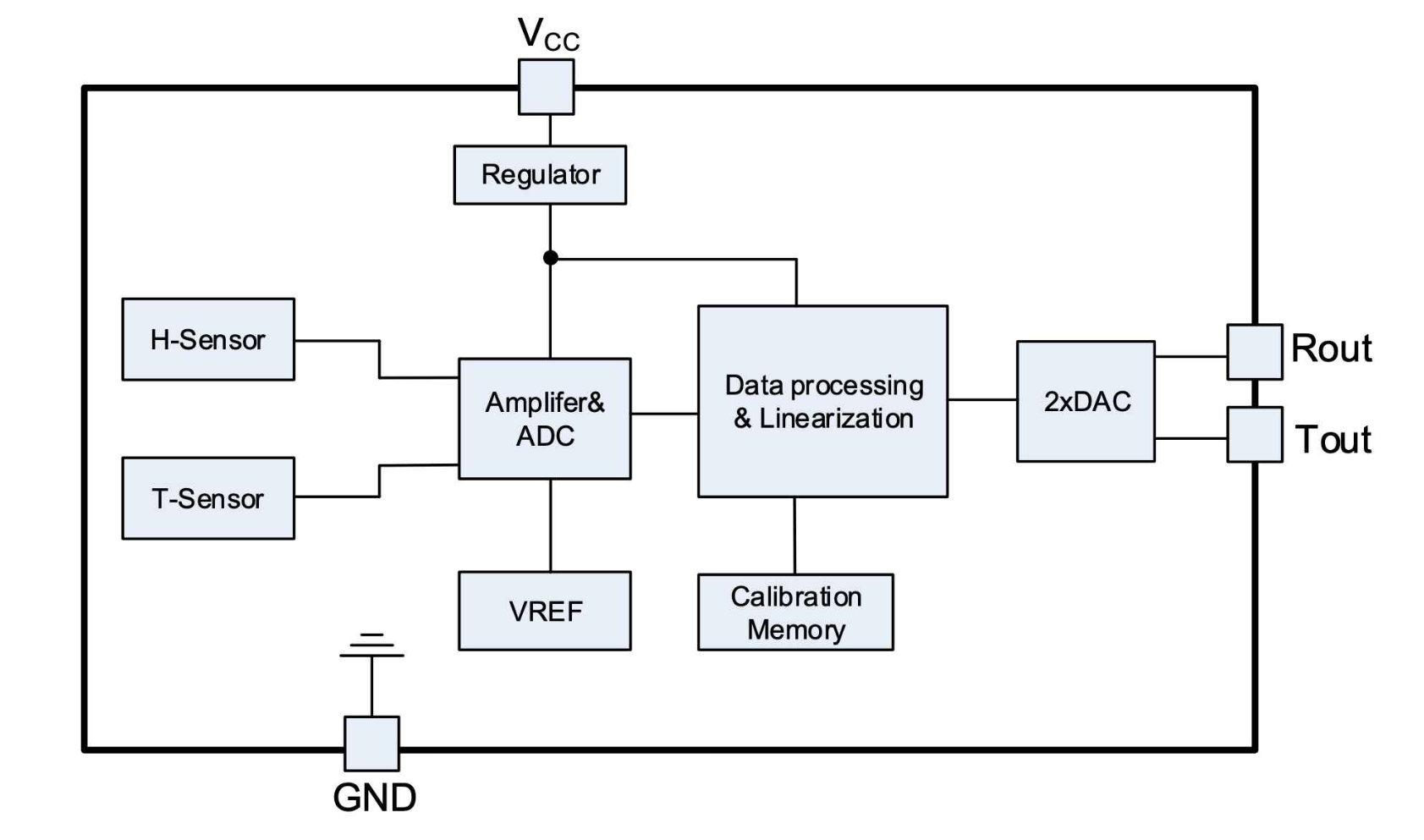

Functional Block Diagram

Package

DFN-2x2-4

Datasheet

CHT8336

Ordering Information

Order PN

Accuracy

Green¹

Package

Marking ID²

Packing

MPQ

Operation Temperature

CHT8336ADNR

±0.2℃

±2%RH

Halogen free

DFN2X2-4

HT

YWXA

Tape & Reel

3,000

-40℃~+125℃
